Hawkeye system inspection

•

  Full Container Inspector

  Product model:  Smart C-1100/ Martix C-1200

  Installation position: filling machine after a single linear channel.

  Inspection module: high cover, crooked cover, no cover, broken (Bridge) loop, split cover, coding, and liquid level.

  Defective processing modes: pneumatic single / dual-stage automatic rejecter.

  Maximum detection capability: 72000BPH.

  詳情 >
•

  Label Inspector

  Product model:  Smart L-3100/ Martix L-3200
  Installation position: sleeve labeling machine / labeling machine after a single linear channel.

  Inspection module: high label, low label, no label, slant label, broken label, joint label, bad shrinkage

  Defective processing modes: single-stage pneumatic automatic rejecter.

  Maximum detection capability: 72000BPH.



  詳情 >
•

  Accurate and reliable inspection Small changes on the conveyor belt Rich production statistics and defective products storage, tracking function

  Product model: L-5100

  Installation position: between the filler and the sleeving machine

  Inspection object: soft and deformable packing container

  Inspection module: leakage, no cover, liquid level

  Defective processing modes: single-stage pneumatic automatic rejecter

  Maximum detection capability: 72000BPH

  詳情 >
•

  Code Inspector

  Product model: Smart C-7100

  Installation position: behind the code machine

  Inspection module: No Code, partly code missing
  Inspection type: Cap code, Neck code, can bottom code, label code, package code

  Defective processing modes: single-stage pneumatic automatic rejecter.

  Maximum detection capability: 72000BPH.



  詳情 >
•

  Empty Can Inspector

  Product model: Martix C-7400

  Installation position:  between the filler and cans of conveying system

  Inspection module: cans mouth deformation, gap, foreign body, foreign body in inner wall and inner bottom

  Defective processing modes: single-stage pneumatic automatic rejecter.

  Maximum detection capability: 72000BPH.



  詳情 >
•

  Sealing Surface Inspector

  Product model: P-5000
  Installation position: blowing machine outlet

  Inspection module: ellipticity, inner gap, outer gap, and break gap.

  Detection module is optional: Yes.

  Defective processing modes:  single-stage rejecter

  Maximum detection capability: 72000BPH.



  詳情 >
•

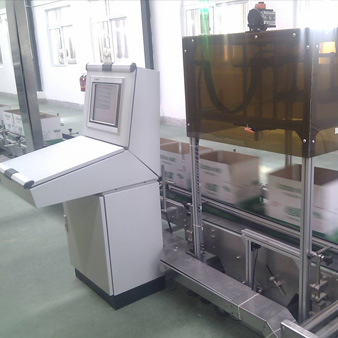

  Full Case Inspector

  Product model: F-200 smart

  Installation position:  between the cartoon filler and the cartoon sealer

  Inspection module: lack of bottle

  Defective processing modes:  single-stage pneumatic automatic rejecter

  Maximum detection capability: 6000 boxes / hour.
